n8n

The MemMachine integration for n8n allows you to build sophisticated AI agents that remember users across sessions[cite: 1]. By using the MemMachine community nodes, you can store interactions, retrieve deep context, and trace memory operations directly within your automation canvas[cite: 2].

Overview

This integration provides two specialized nodes:

MemMachine Manager: Store messages and “Enrich” your agent prompts with semantic context[cite: 3].
MemMachine AI Memory: A native memory node that plugs directly into n8n’s AI Agent node[cite: 4].

Start n8n

To start a simple n8n container run the upstream docker container as described in the official docs:

docker run -it --rm \
  --name n8n \
  -p 5678:5678 \
  -e GENERIC_TIMEZONE="Europe/Berlin" \
  -e TZ="Europe/Berlin" \
  -e N8N_ENFORCE_SETTINGS_FILE_PERMISSIONS=true \
  -e N8N_RUNNERS_ENABLED=true \
  -v n8n_data:/home/node/.n8n \
  docker.n8n.io/n8nio/n8n

With Tracing

If you want to visualize the memory interactions you might want to use the docker-compose file in the github repository.

wget -q [https://raw.githubusercontent.com/MemMachine/n8n-nodes-memmachine/refs/heads/main/docker-compose.yml](https://raw.githubusercontent.com/MemMachine/n8n-nodes-memmachine/refs/heads/main/docker-compose.yml)
docker-compose up -d

Either way, after one of the commands finished, you are able to open your n8n instance.

First Login

Open localhost:5678/:

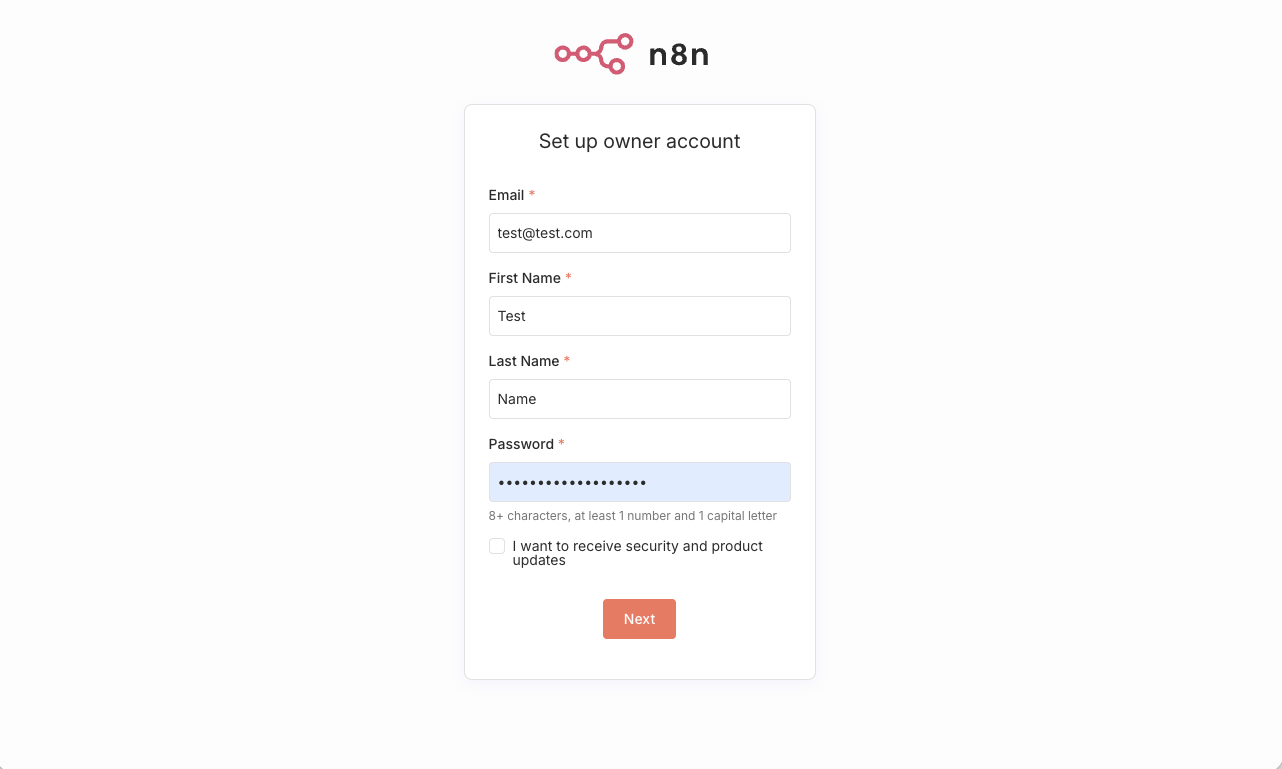

Fill out a sign-up form.

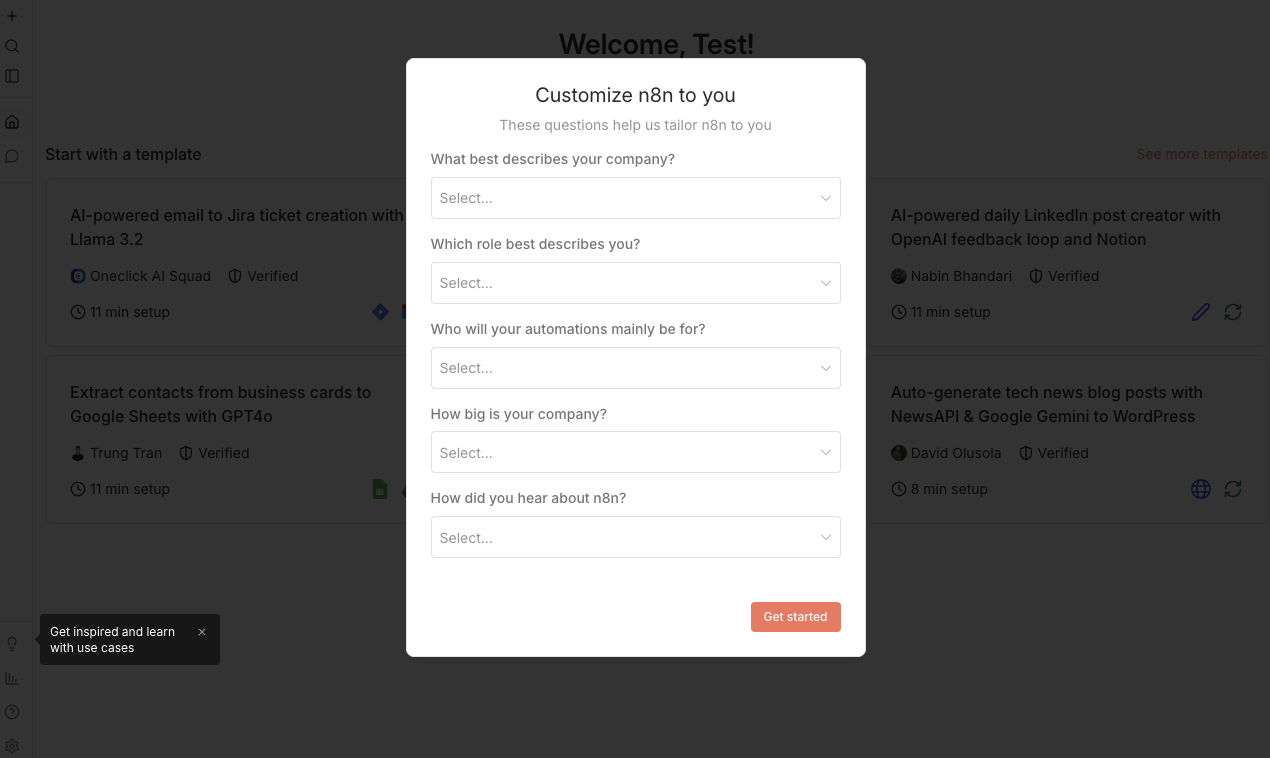

Skip the customization and click Get Started.

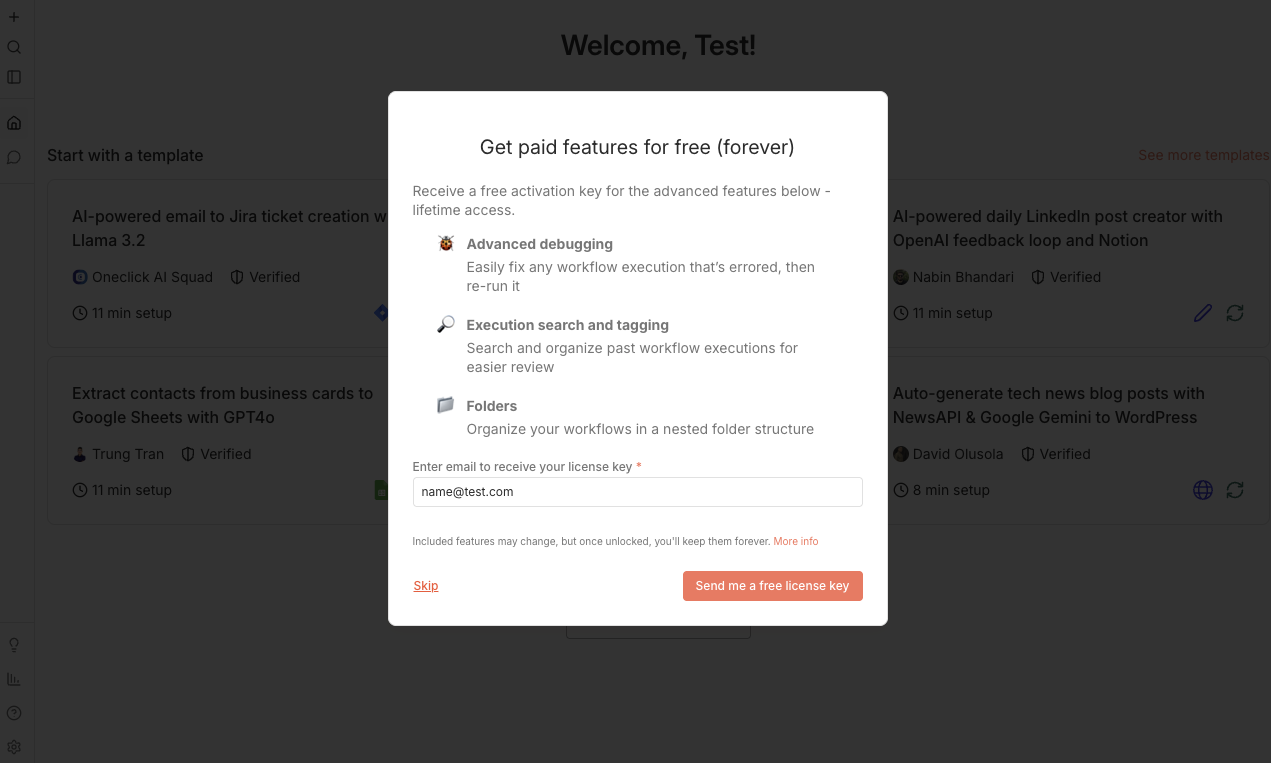

Skip the offer page with Skip.

Install the Community Node

If you are using a self-hosted n8n instance:

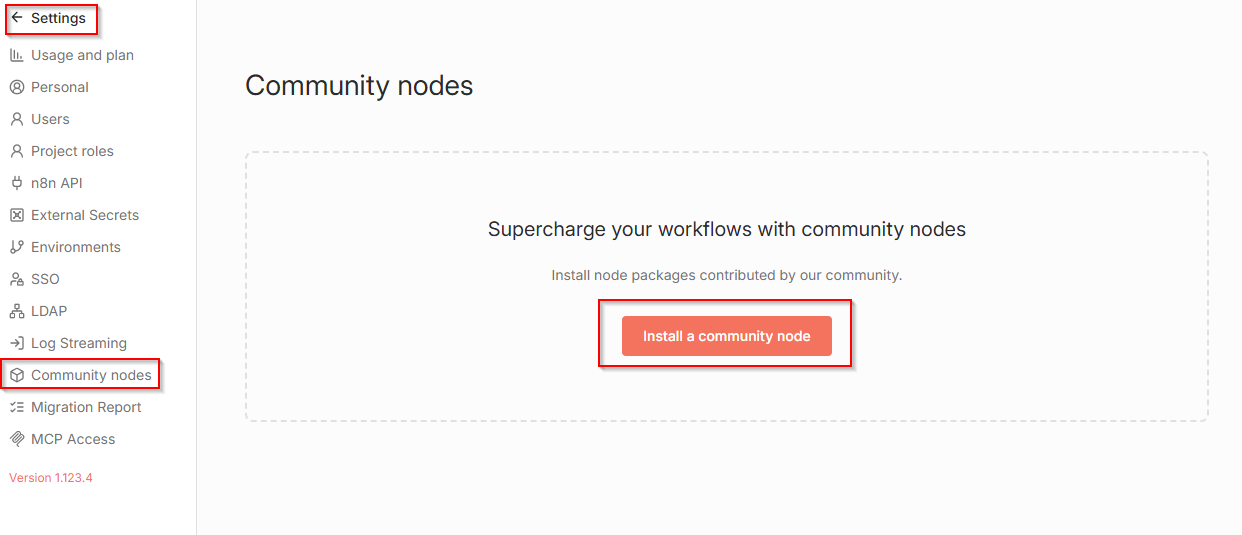

Navigate to Settings > Community Nodes.

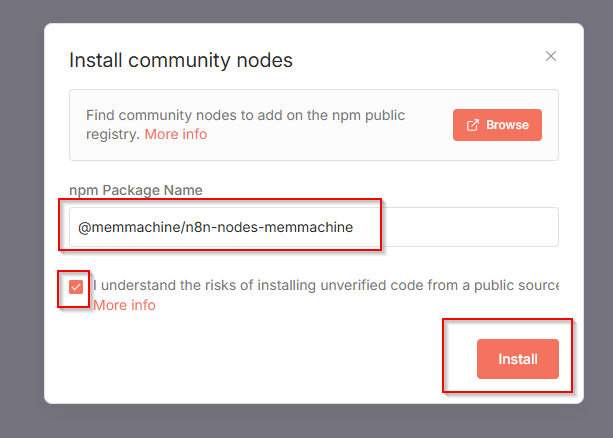

Click Install a community node.
Enter the package name: @memmachine/n8n-nodes-memmachine
Acknowledge the risk and click Install.

Configure Your Credentials

When you add a MemMachine node, you will be prompted to create credentials. You will need your API Key from the MemMachine Dashboard.

MemMachine Manager Node

The Manager node is used for manual memory operations at any point in your workflow.

Connect MemMachine

To use the node you’ll need to configure a connection. In case you are running MemMachine on the same machine as a docker container use this endpoint: http://host.docker.internal:8080/v2/api

Action: Store a message

Saves a specific content string to long-term memory.

Parameter	Type	Description
orgId / projectId	String	Required. Your unique organization and project identifiers.
types	multiOptions	Required. Memory types to use (episodic, semantic).
producer	String	Required. Who created this message (e.g., “Agent” or “User”).
producedFor	String	Required. Intended recipient of the message.
episodeContent	String	Required. The actual message text to store.
episodeType	Options	`none` (default) or `message`.
metadata	JSON	Additional metadata to associate with the message.
sessionId	String	Required. Unique session identifier.
groupId	String	Unique group identifier (defaults to `default`).
agentId / userId	String	Required. Identifiers for the specific AI agent and user.

Action: Enrich with context

Retrieves historical context to inject into an LLM prompt.

Parameter	Type	Default	Description
orgId / projectId	String	-	Required. Unique organization and project identifiers.
types	multiOptions	-	Required. Memory types to use (episodic, semantic).
query	String	-	Required. Natural language query for semantic search.
limit	Number	50	Maximum number of memory results to return.
scoreThreshold	Number	-	Minimum relevance score required to include a memory.
filter	String	-	Filter expression to refine memory search results. Prefix user metadata fields with `m.` / `metadata.` (for example `m.user_id = '123'`). String literals must be single-quoted. Unknown or misspelled user metadata fields return a 400 error.
expandContext	Number	0	Number of extra episodes to include for context.
sessionId	String	-	Required. Unique session identifier.
groupId	String	`default`	Unique group identifier.
agentId / userId	String	-	Required. Identifiers for the specific AI agent and user.
enableTemplate	Boolean	`true`	Renders a formatted context string using a template.
contextTemplate	String	`default template`	Markdown template for formatting.

MemMachine AI Memory Node

Connect this node directly to the Memory input of a native n8n AI Agent node.

Parameter	Type	Default	Description
orgId / projectId	String	-	Required. Your unique organization and project identifiers.
contextWindowLength	Number	10	Max recent messages to include in chat history.
enableMemoryTemplate	Boolean	`false`	Whether to wrap history in a formatted template.
historyCount	Number	5	Number of episodic memories to include in the template.
shortTermCount	Number	10	Number of short-term memories to include.
memoryContextTemplate	String	`default template`	Markdown template for formatting.

default template refers to the system’s built-in memory context template. Users may override it with a custom template.

Video Walkthrough

Seeing is believing. Check out this practical demonstration of setting up MemMachine nodes within n8n to create persistent AI agents.

Observability & Tracing

MemMachine nodes support native OTLP Tracing for debugging complex agent logic.

Parameter	Type	Description
tracingEnabled	Boolean	Set to `true` to enable operation tracing.
traceVerbosity	Options	`minimal`, `normal`, or `verbose`.
exportToJaeger	Boolean	If `true`, sends traces to your Jaeger instance.
jaegerOtlpEndpoint	String	The endpoint URL (e.g., `http://jaeger:4318/v1/traces`).

When using the AI Memory Node, ensure your agentId and userId are passed consistently across the workflow to ensure the agent’s “recognition” of the user remains persistent.
